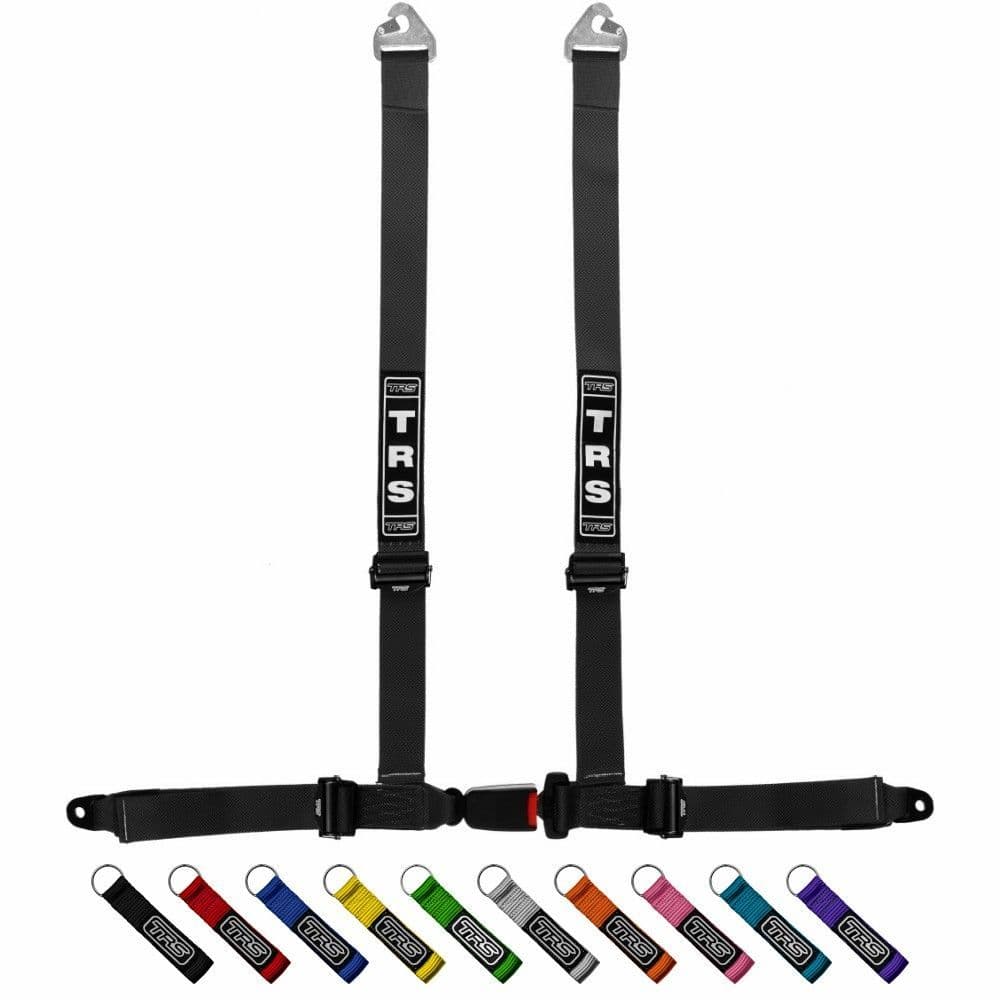

TRS Westfield 4 Point Road Harness

A 4 point road harness from TRS, specifically designed for Westfields. With shorter shoulder straps, these are ideal for use in your Westfield if only used on the road.

As standard they feature shoulder straps sewn to the correct length, to avoid unnecessary adjusters and fabric in a tight cockpit, and lap straps which adjust by pulling down to tighten.

These Westfield specific harnesses have shoulder straps which measure 45cm from the adjuster to the fixing point.

The key features of this harness are shown below and above is a detailed description. If you are not sure this harness is the correct one for your requirements, click HERE to view the full range of Westfield Harnesses.

• 2 snap hook fixing points on shoulder straps, 2 bolt-in fixing points on lap straps
• Road legal 16.06
• 50mm (2") shoulder straps
• 50mm (2") lap straps
• Standard colours are Red, Blue and Black. Yellow, Green, Grey/Silver, Orange, Pink and Miami Blue are special order (see dropdown above)
• Push button release buckle
• 7/16" UNF bolts, eye bolts and instructions included
• Made in England

Fixing Points

This harness is supplied with anchor plates and 7/16" UNF bolts. The anchor plates have a 15mm hole and are supplied with a top hat spacer that reduces the hole size to the correct diameter for the 7/16" bolts, and allows the anchor plates to rotate slightly when in position.

Shoulder Straps

• Shoulder straps are approximately 45cm from the adjuster to the fixing point
• The adjustment range of the lower shoulder strap is between 10cm and 40cm
• The fixings at the end of the shoulder straps are sewn on

Options

Free Keyring With Every TRS Order!

Exclusive offer for Carnoisseur customers! We are now giving away a free TRS keyring worth £12.95 with every order for TRS harnesses!

This superb keyring from TRS is made from the same high quality webbing as their harnesses, and is available in the same range of colours too: Black, Red, Blue, Yellow, Green, Grey/Silver, Orange, Pink, and Miami Blue. Made in the UK at the TRS factory, the keyring is 10cm in length, and is a great looking, practical accessory for all motorsport enthusiasts.

Select which colour TRS keyring you would like to add to your order using the dropdown menu above.

Please note that just one keyring is provided by order.

Webbing Colour

TRS Harnesses are available in 9 different webbing colours: Red, Blue, Black, Yellow, Green, Grey/Silver, Orange, Pink, and Miami Blue.
Red, Blue, and Black harnesses are the most common colours, so harnesses in those colours are usually in stock, if you need your harnesses in a hurry.

Thread Colour

As standard, TRS Harnesses are stitched using the same colour thread as the webbing, but contrasting colours are also available. There are 9 different thread colours available: Red, Blue, Black, Yellow, Green, Grey/Silver, Orange, Pink, and Miami Blue.

Adjusters

You can upgrade the harnesses to the Superlite or Ultralite versions. As standard TRS harnesses use steel anti-creep adjusters. Also available are premium aluminium alloy adjusters, which in addition to being lightweight, offer a smoother and faster adjustment. The Superlite harnesses use these lightweight aluminium adjusters on the shoulder straps, and the Ultralite harnesses use them on both the shoulder and lap straps.

They are highly recommended for vehicles being shared between multiple drivers, and in general we always recommend upgrading to the aluminium adjusters due to their premium look and feel.

Standard Steel Adjusters

50mm (2") steel adjusters

75mm (3") steel adjusters

Premium Aluminium Adjusters

50mm (2") aluminium adjusters

75mm (3") aluminium adjusters

Pull Down or Pull Up Lap Straps?

Lap straps can be supplied with either pull down or pull up adjusters. You can make your selection using the dropdown menu above.

We normally recommend pull down adjusters that sit approximately 12cm from the buckle. We recommend these so you have easy access to the adjuster, and they will definitely be positioned within the seat.

As standard, pull up adjusters will sit approximately 12cm from the fixing point at the end of the lap strap, making them difficult to access (they will be down by the sides of the seat), however we are happy to supply them if this is your preference. If you would like pull up adjusters that are a different distance from the fixing point, please contact us. We have supplied some customers with harnesses that have pull up lap adjusters that are 22cm from the fixing point but you would need to check to see if this would be right for your vehicle and the seat you have fitted.

Extras

TRS Shoulder Pads

TRS Webbing Cutter

With these harnesses we offer some optional extras for your comfort and safety, which you can select using the dropdown boxes above.

A pair of TRS Shoulder Pads are available in three colours: black, red, and blue. They simply attach with velcro around the shoulder strap area of the harness, for added comfort for the wearer. They will be provided in the appropriate size for the harness you choose.

Also available is a TRS Webbing Cutter, for use in case of emergencies. This is a knife for a driver, passenger or marshal to cut through harnesses and webbing in the event of an accident, to quickly release the wearer and avoid being trapped in the car. The cutter meets the MSA Blue Book requirement which states "Belt cutter(s) must be carried on board at all times", so it's a must-have when racing.

CLICK HERE to download the fitting instructions for this TRS Harness.

This TRS Harness can be fitted by a competent enthusiast or at a professional workshop.

The delivery estimate for this product is within 5 to 7 working days.
